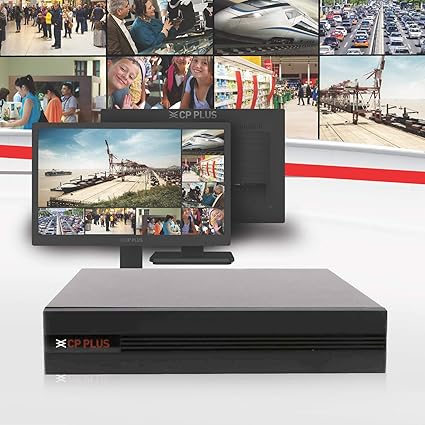

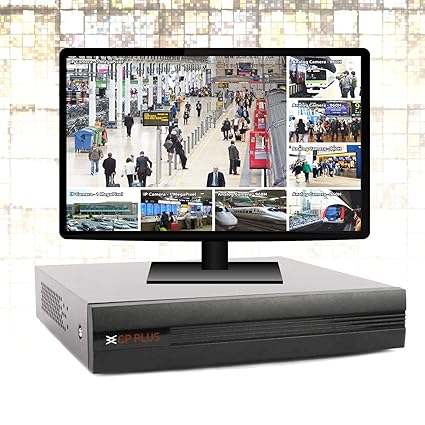

CP PLUS 8CH DVR

Description

Here’s a more detailed breakdown of common specifications for CP PLUS 8 Channel DVRs:
Video Input and Processing:

•  Multiple Input Types: They can typically handle HDCVI, AHD, TVI, CVBS, and IP cameras.
•  Resolution Support: Commonly support resolutions up to 1080P (Full HD) or 5MP.
• Video Compression: Often use H.265+ compression for efficient storage.
•  Incoming Bandwidth: Max 40Mbps.
  Recording and Storage:
•  Number of Channels: 8 channels.
• Recording Mode: Can include continuous, scheduled, motion-detection, and alarm-based recording.
• Hard Drive: Usually supports one SATA HDD up to 6TB capacity.
  Output and Connectivity:
• Video Output: HDMI and VGA ports for simultaneous display.
• Interface Ports: Commonly include 2 USB ports (USB 2.0).
• Network: RJ-45 port (100M) for remote access and control.
  Software and Functionality:
•  Remote Access: Mobile apps (iCMOB, gCMOB) and PC so ware (KVMS Pro) for remote
  viewing and management.
• Playback: Features like play, pause, rewind, fast forward, and digital zoom.
• User Accounts: Support for multiple user accounts with varying permissions.
• Protocols: Support for standard protocols like HTTP, HTTPS, TCP/IP, ONVIF, and others.
  Other Specifications:
•  Power Supply: Typically DC12V/1.5A.
• Power Consumption: Generally less than 10W without HDD.
• Working Temperature: Typically -10°C to +45°C.
• Dimensions: Around 197mm x 192mm x 41mm.
