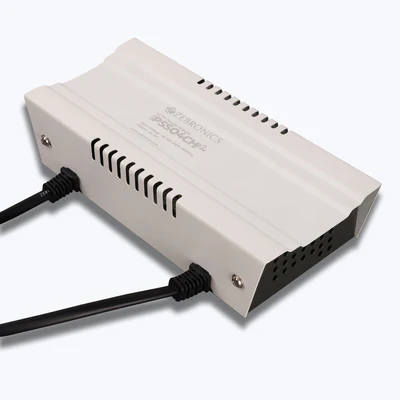

ZEBRONICS 4CH SMPS

Description

The Zebronics ZEB-PSS04CH-PRO is a 4-channel CCTV power supply with a 30W output, designed for 12V DC devices. It has an input voltage range of AC 110V – 240V and a 12.3V – 12.8V output voltage. It features 4 separate power connectors, surge and short-circuit protection, and an LED indicator. The power supply unit is also designed for wall mount and includes a non-detachable 2-pin Indian power cord.

Key Features:

• Input Voltage: AC 110V – 240V
• Output Voltage: 12.3V – 12.8V
• Output Current: 0.4A (based on input voltage of AC 110V – 240V)
• Power: 30W (true power)
• Output Connectors: 4 separate 12V DC connectors
• Protection: Surge and short-circuit protection with auto recovery
• Indicator: LED power indicator
• Mounting: Wall mount provision, built-in power cord
• Burn-in Test: 100% full load burn-in test
• MTBF: >50,000 hours
• Cooling: Free air convection
• EMI Filter: Built-in EMI filter
• Case Material: Metal
• Color: White
• Usage: Indoor
